HARDDECK™ - Foldable Amphibious Drone Landing Pad

Patented Product Overview

Drone pilots, both professional and amateur alike, all know that sometimes drone operations need to be away from people. This can make take-off and landing areas tricky to find. The

WORLD'S FIRST and ONLY rigid HARDDECK™ FOLDABLE, AMPHIBIOUS DRONE LANDING PAD

is a rugged, portable, and multi-surface solution built for all size drones up to the DJI M400 series. Whether launching from rocky terrain, a sloped hillside, or directly on water — this landing pad ensures safe, stable takeoffs and landings. This foldable pad make transport and setup easier for field work.

Fold it. Float it. Deploy anywhere.

Six reasons for a protected drone landing pad:

1. Protect your expensive drone. The pad keeps dust, sand, and dirt out of motors and gimbal – especially on beaches, gravel roads, grass or dusty fields.

2. Improves Takeoff/Landing. The pad gives you a flat, stable surface in uneven or soft terrain and helps drones with downward vision sensors lock onto a clear, high-contrast target.

3. Protects the Environment. It also stops your props from kicking up stones or debris that could damage your drone or nearby people/property.

4. Visibility. A bright pad makes it easy to see where to land, especially if you’re flying further away or using Return-to-Home.

5. Professionalism. If you’re flying commercially (inspections, real estate, film work), using a pad looks more professional and organized.

Key Features

• The ~4 kg weighted pad: Creates a stable platform—unlike lightweight, cheaper pads.

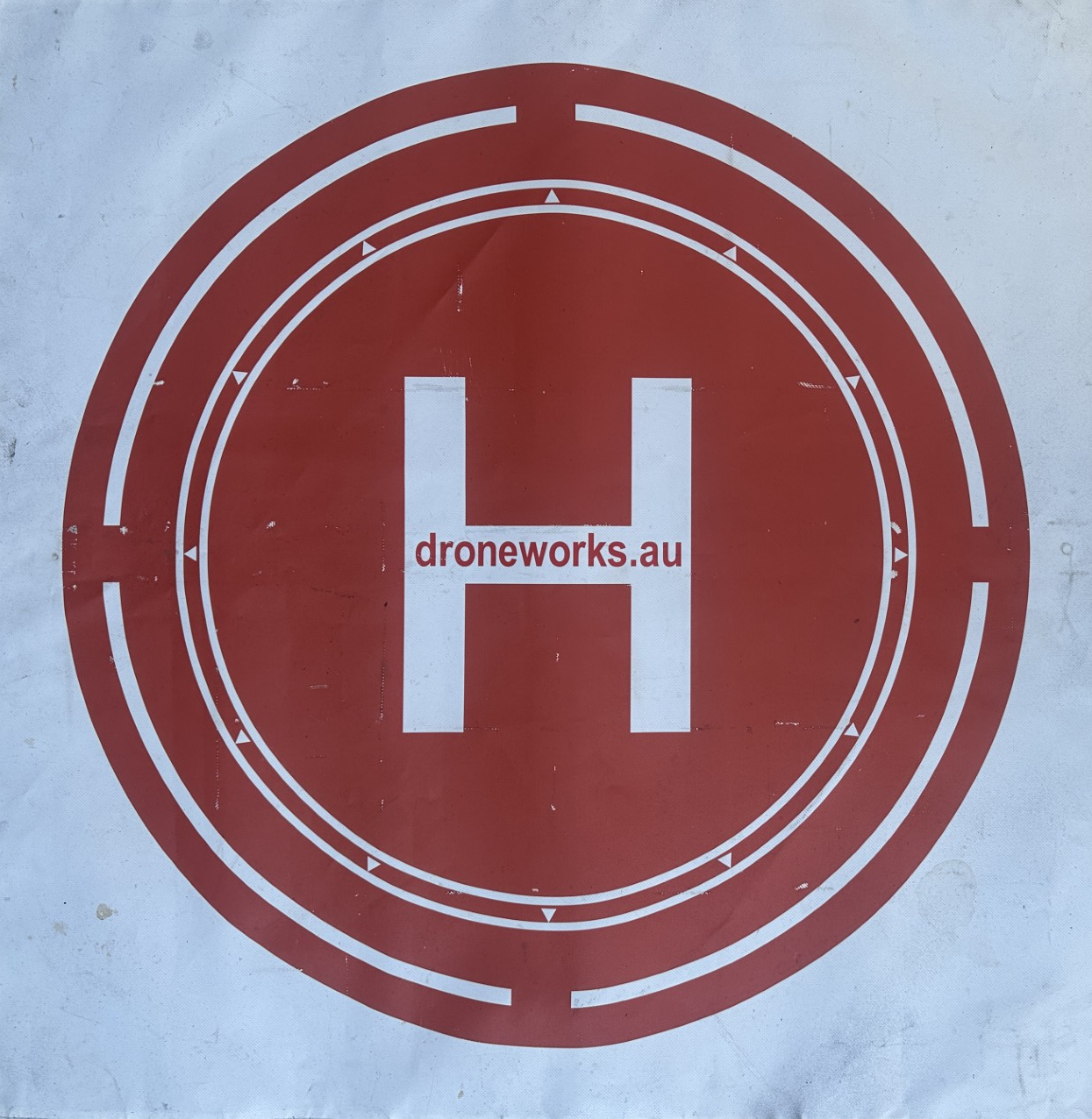

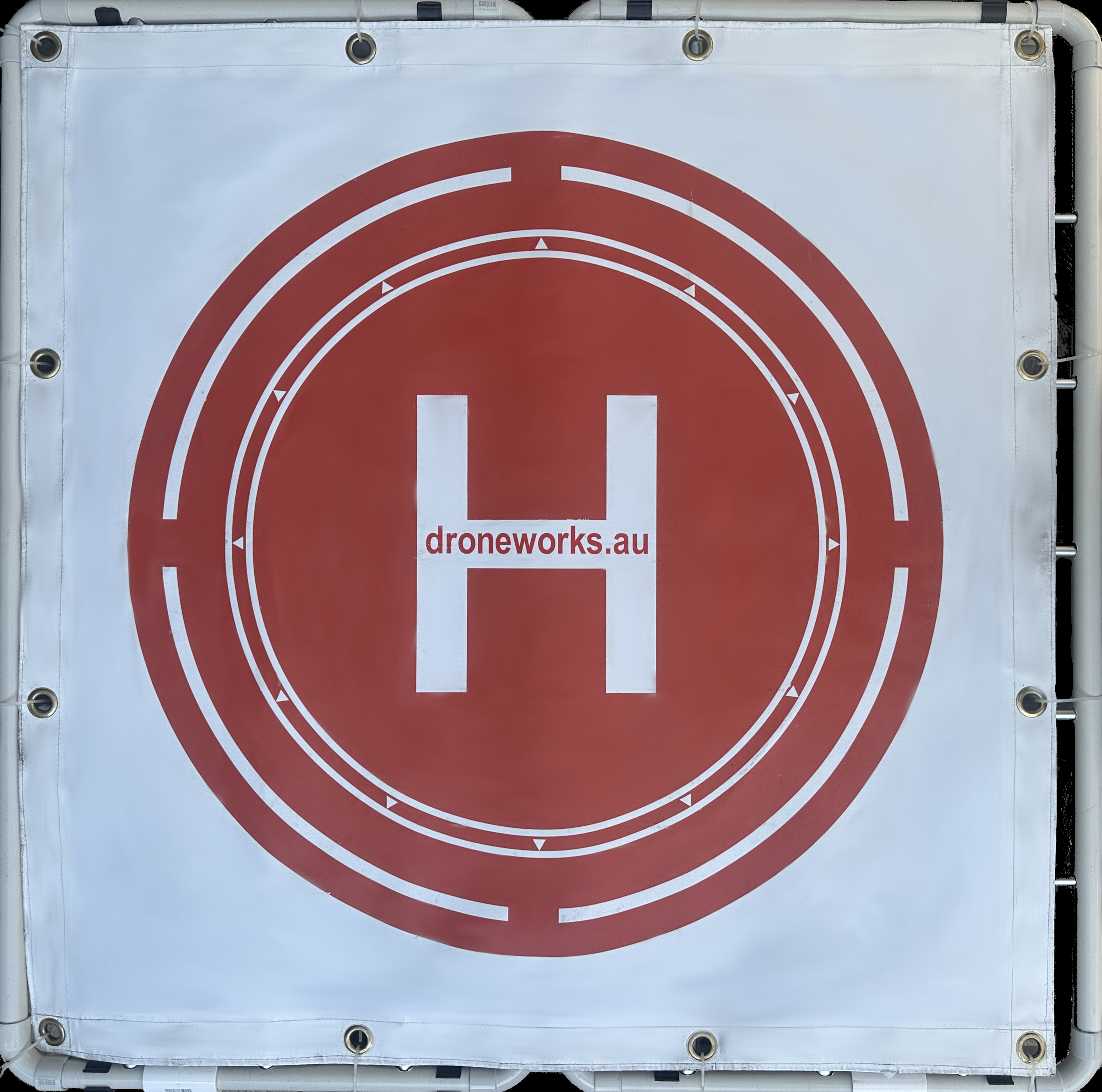

• Durable 1m² Landing Surface: Textured PVC with aluminum lattice, anti-slip finish, bold "H" target.
• Bi-Fold Portability: Folds to 1000 × 500 mm, easy carry, starting weight ~4 kg.

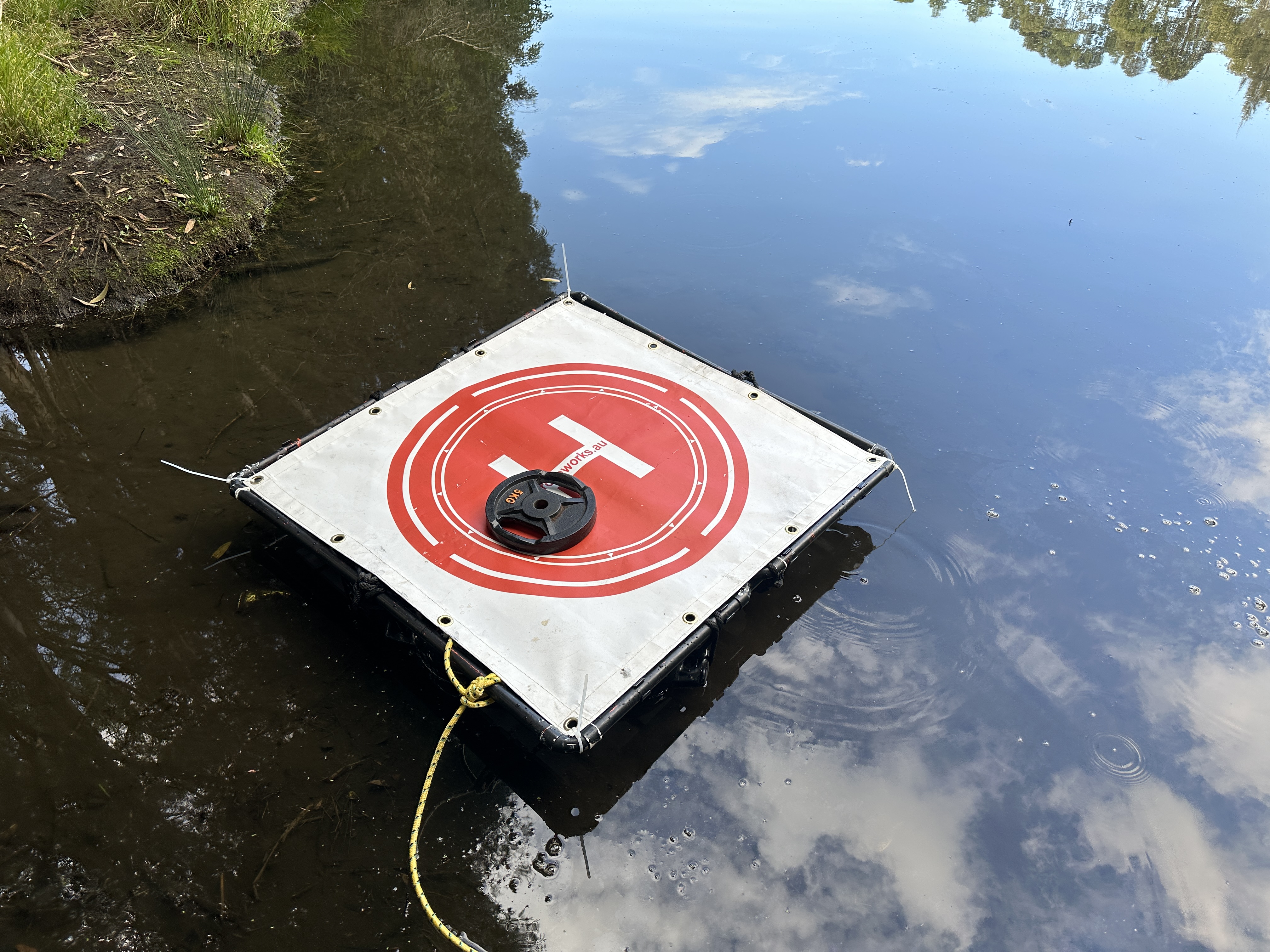

• Float-Ready: Four detachable marine-grade floats for aquatic landings.
• Leveling Legs: Two adjustable telescoping legs for uneven or angled terrain.

Designed For

• Search & Rescue
• Field Surveying & GIS
• Utilities & Infrastructure Inspection
• Defence & Tactical Operations
• Maritime / Aquatic Mapping
• Surfaces that pose a risk to the drone

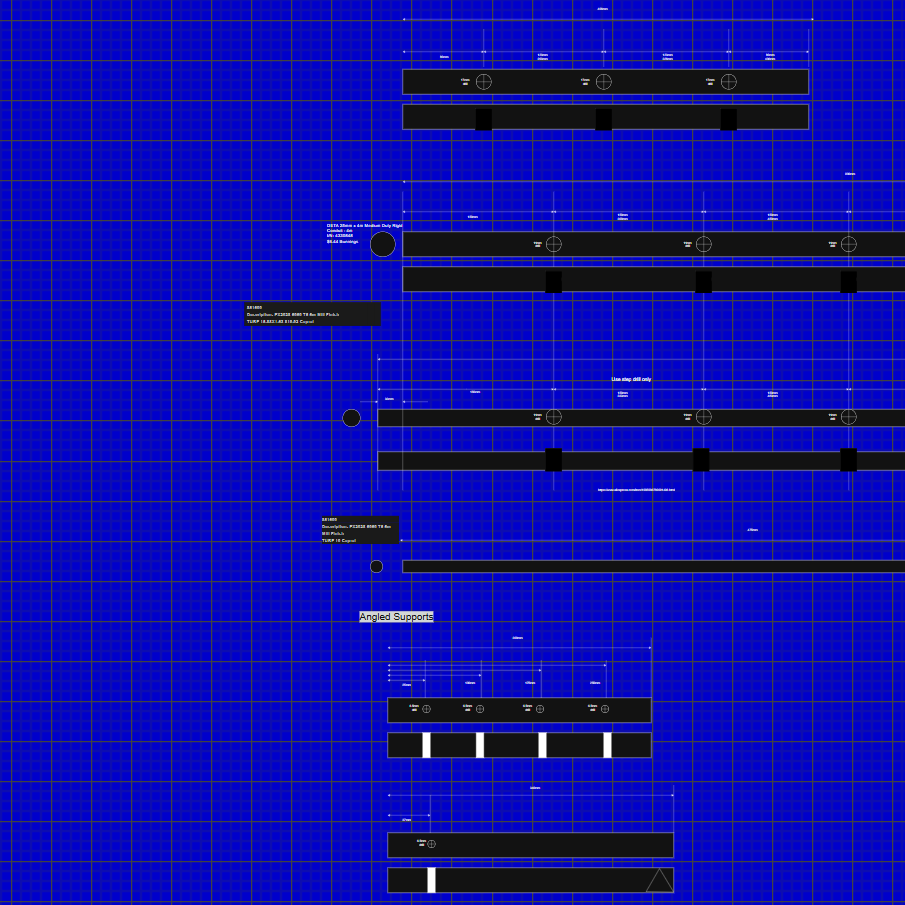

Technical Specifications

Feature	Detail
Unfolded Size	1000 × 1000 mm
Folded Size	1000 × 500 mm
Material	Tough PVC landing surface, 20mm rigid PVC frame, 15mm aluminium frame
Weights	~4 kg, ~4.1 kg telescopic legs, ~4.5 kg aquatic landing
Buoyancy	4 floats = 20 kg lift
Leveling Legs	2 telescoping legs, 350 - 500 mm adjustable (up to 45 degrees angle of surface)
